Ever thought to yourself, "Self...I sure wish my ATV was a little wider. I'd feel a whole lot safer...and I'd get a little better bite in the ruts!" High Lifter Wide Trac Aluminium Wheel Spacers are designed to move ATV wheels slightly out from the hubs and shocks.
There are several major benefits provided by Wide Tracs:
- They extend wheel width for greater stability and increased safety. Riders of tall ATVs will feel much more comfortable on side hills with the wider base provided by Wide Tracs.
- They provide mud tyres a fresh "bite" at the side of ruts instead of the ATV simply driving down the deepest part of the center of the ruts where previous riders have been. So the problem of getting stuck by being "high centered" is reduced.
- They allow the installation of larger, aftermarket tyres without rubbing shocks, struts or exhaust systems.
High Lifter's Wide Tracs are machined from aircraft grade 6061 billet aluminium and use grade 10.9 studs. No OEM studs are required to be removed from the ATV and stud extenders are not used. Wide Tracs bolt to existing studs and the wheel is then bolted to the grade 10.9 Wide Trac Stud furnished. This design is the strongest available to ATVs and are comparable to automotive grade wheel adapters.

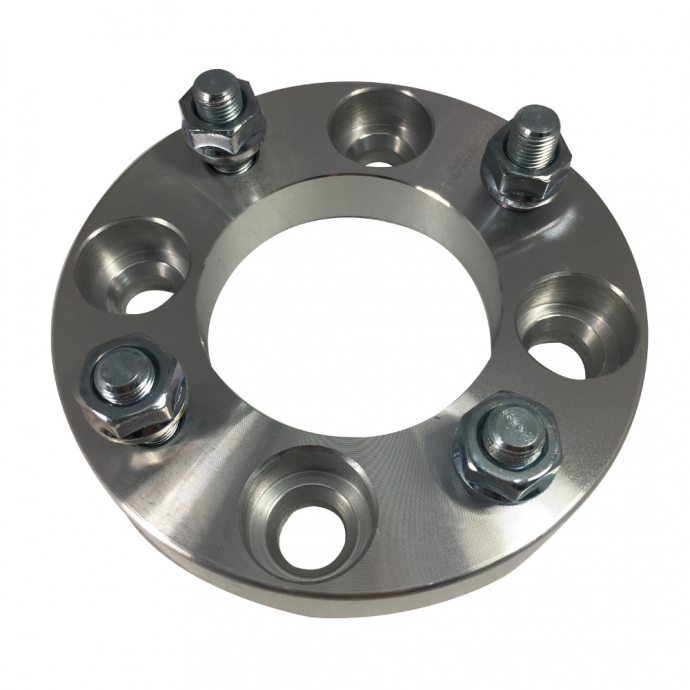

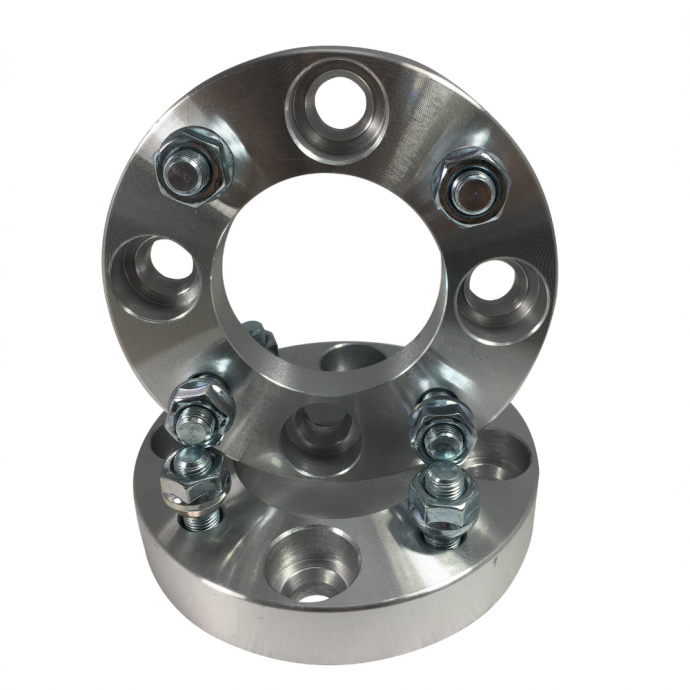

This 25 mm (1") Spacer is a 4/137 10 x 1.5 mm lug nut. Sold as a pair (2)
NOTE: The 25 mm (1") spacer does not fit the Can-Am X3, (even though the 38 mm [1.5"] does fit the Can-Am X3).
Installation
Most of our products come shipped with installation instructions. But we know sometimes things can be a little trickier than they seem. If you need some assistance installing this product, drop us a line and one of our friendly staff can give you some advice.
