Save Your Axle
Don’t let a damaged boot ruin your ride! Discovering that you have a cracked or worn CV boot is no fun, but it’s an easy fix if you’ve got the right materials. That’s why we believe it’s always a good idea to keep a replacement boot kit on hand.

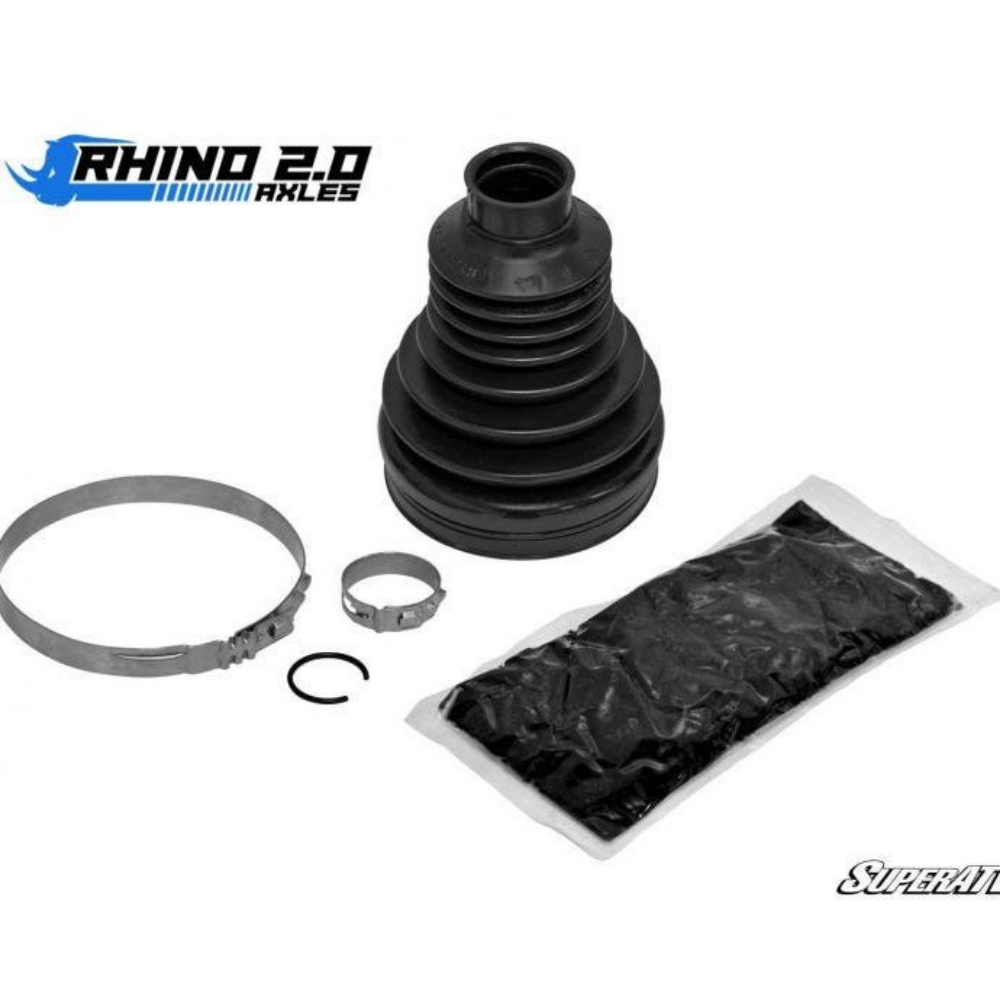

SuperATV’s Replacement Boot Kit for Rhino 2.0 Axles comes with everything you need for a quick fix—boot, clip, bands, and grease. The replacement boot is made out of the same high-strength rubber or TPEE (Thermoplastic Elastomer) that your 2.0 axles came with, so you know they’re designed for long-lasting durability.
NOTE: These boots are designed to work with Rhino 2.0 Axles. The SKU number associated with your axle can be found on the shaft.
| BK00-003 | ||
| CAN-AM RHINO 2.0 CV BOOT FITMENTS | ||
| Rhino 2.0 Axles | Inner CV Boot Kit | Outer CV Boot Kit |
| AX07-002FL0 | YES | YES |
| AX07-005FL0 | YES | YES |
| AX-7-67-FL-0-DT | YES | NO |
| AX-7-67-FL-LK6-BT | YES | NO |
| AX-7-72-F-0-BT-001 | YES | YES |
| AX-7-72-FL-LK6-BT | YES | YES |
| AX-7-73-F-0-BT-001 | YES | YES |
| AX07-001R0 | NO | YES |
| AX07-003FR0 | NO | YES |
| AX07-004R0 | NO | YES |
| AX07-006FR0 | NO | YES |
| AX07-007R0 | NO | YES |
| AX07-008R1 | NO | YES |
| AX07-009R0 | NO | YES |
| AX07-010R0 | NO | YES |
| AX07-011R2 | NO | YES |
| AX07-012R1 | NO | YES |
| AX07-013R-0 | NO | YES |
| AX07-014R-2 | NO | YES |
| AX07-015R-1 | NO | YES |
| AX07-016R-0 | NO | YES |
| AX07-017R-0 | NO | YES |
| AX07-018R-0 | NO | YES |
| AX07-019R-1 | NO | YES |
| AX07-020FL-0 | NO | YES |
| AX07-021FL-0 | NO | YES |
| AX07-022FL-1 | NO | YES |
| AX07-023FR-0 | NO | YES |
| AX07-024FR-0 | NO | YES |
| AX07-025FR-1 | NO | YES |
| AX-7-32-FL-6-BT | NO | YES |
| AX-7-32-FL-LK8-BT | NO | YES |
| AX-7-32-FL-LT3-BT | NO | YES |
| AX-7-32-FR-6-BT | NO | YES |
| AX-7-32-FR-LK8-BT | NO | YES |
| AX-7-32-FR-LT3-BT | NO | YES |
| AX-7-32-R-LK8-BT | NO | YES |
| AX-7-66-R-LK6-BT | NO | YES |
| AX-7-67-R-0-DT-001 | NO | YES |
| AX-7-67-R-LK6-BT | NO | YES |
| AX-7-72-FR-LK6-BT | NO | YES |
| AX-7-72-R-LK6-BT | NO | YES |
| HONDA RHINO 2.0 CV BOOT FITMENTS | ||
| Rhino 2.0 Axles | Inner CV Boot Kit | Outer CV Boot Kit |
| AX-3-64-F-LK6-BT | YES | YES |
| AX-3-64-F-0-DT | NO | YES |
| AX-3-64-RL-0-DT | NO | YES |
| AX-3-64-RL-LK6-DT | NO | YES |
| AX-3-64-RR-0-DT | NO | YES |
| AX-3-64-RR-LK6-DT | NO | YES |
| KAWASAKI RHINO 2.0 CV BOOT FITMENTS | ||
| Rhino 2.0 Axles | Inner CV Boot Kit | Outer CV Boot Kit |
| AX-4-34-FR-LK6-DT | YES | YES |
| AX-4-34-FL-LK6-DT | NO | YES |
| AX-4-34-R-LK6-BT-001 | NO | YES |
| AX-4-34-R-LK6-DT | NO | YES |
| POLARIS RHINO 2.0 CV BOOT FITMENTS | ||
| Rhino 2.0 Axles | Inner CV Boot Kit | Outer CV Boot Kit |
| AX01-023F-2 | YES | NO |
| AX01-024F-1 | YES | NO |
| YAMAHA RHINO 2.0 CV BOOT FITMENTS | ||
| Rhino 2.0 Axles | Inner CV Boot Kit | Outer CV Boot Kit |
| N/A | N/A | N/A |
Installation
Most of our products come shipped with installation instructions. But we know sometimes things can be a little trickier than they seem. If you need some assistance installing this product, drop us a line and one of our friendly staff can give you some advice.
