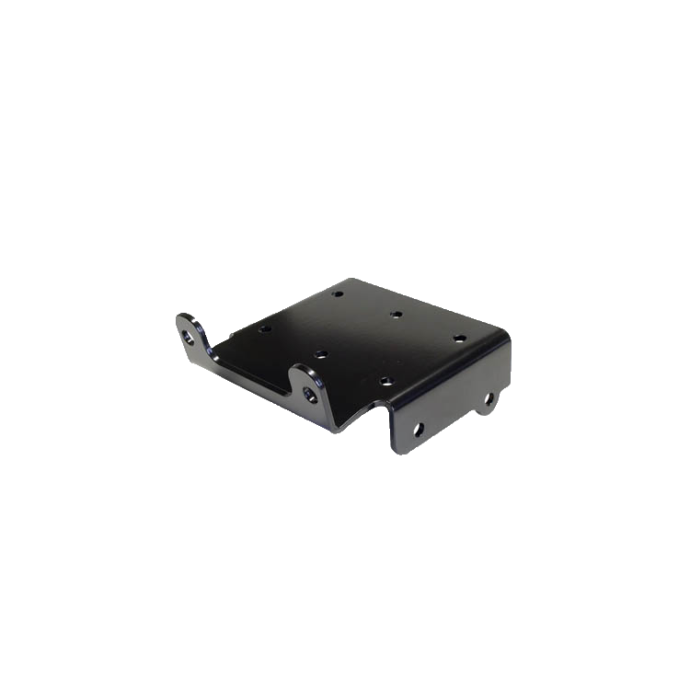

Winch Mount for the following Suzuki ATVs:
- All 2007-2010 King Quad 450
- All 2009-2018 King Quad 500 AXI
- All 2005-2007 King Quad 700
- All 2008-2018 King Quad 750
Designed to work with the following Winches:
- OZ ARMOUR: EWX2000A / EWP2500A / EWP2500ASR / EWP3500ASR
- MILLER UTILITY: EWP3500A
- KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
- KFI: AM-25 / AM-35 / AS-25 / AS-35
- KFI: AS-50 (requires purchase of ATV-MR)
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK: 1500 lb #2955AT
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
- BADLAND: 2-Hole Winches
- BADLAND: Standard Winches
- CHAMPION: 2-Hole Winches
- CHAMPION: Standard Winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
- KEEPER CORP. TRAKKER: KT2000
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- SMITTYBILT: XRC 2.0
- Requires roller fairlead with a 124 mm (4.875") bolt pattern.
- Listed models come with incorrect ATV roller fairleads.
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern)
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 76 mm (3.00") x 124 mm (4.875") bolt pattern with rollers that are 124 mm (4.875") bolt pattern.
- TRAVELLER: 1078088/ 1078302
- Requires roller fairlead with a 124 mm (4.875") bolt pattern; available if needed #ATV-RF
- Possibly many others with the below standard mounting patterns -
- 4-Hole Standard (76 mm [3.00"] x 124 mm [4.875"] bolt pattern with rollers that are 124 mm [4.875"] bolt pattern)
- 2-Hole (79 mm [3.10"] with rollers that are 124 mm [4.875"] bolt pattern)
- QUADBOSS: RP25 / RP35
